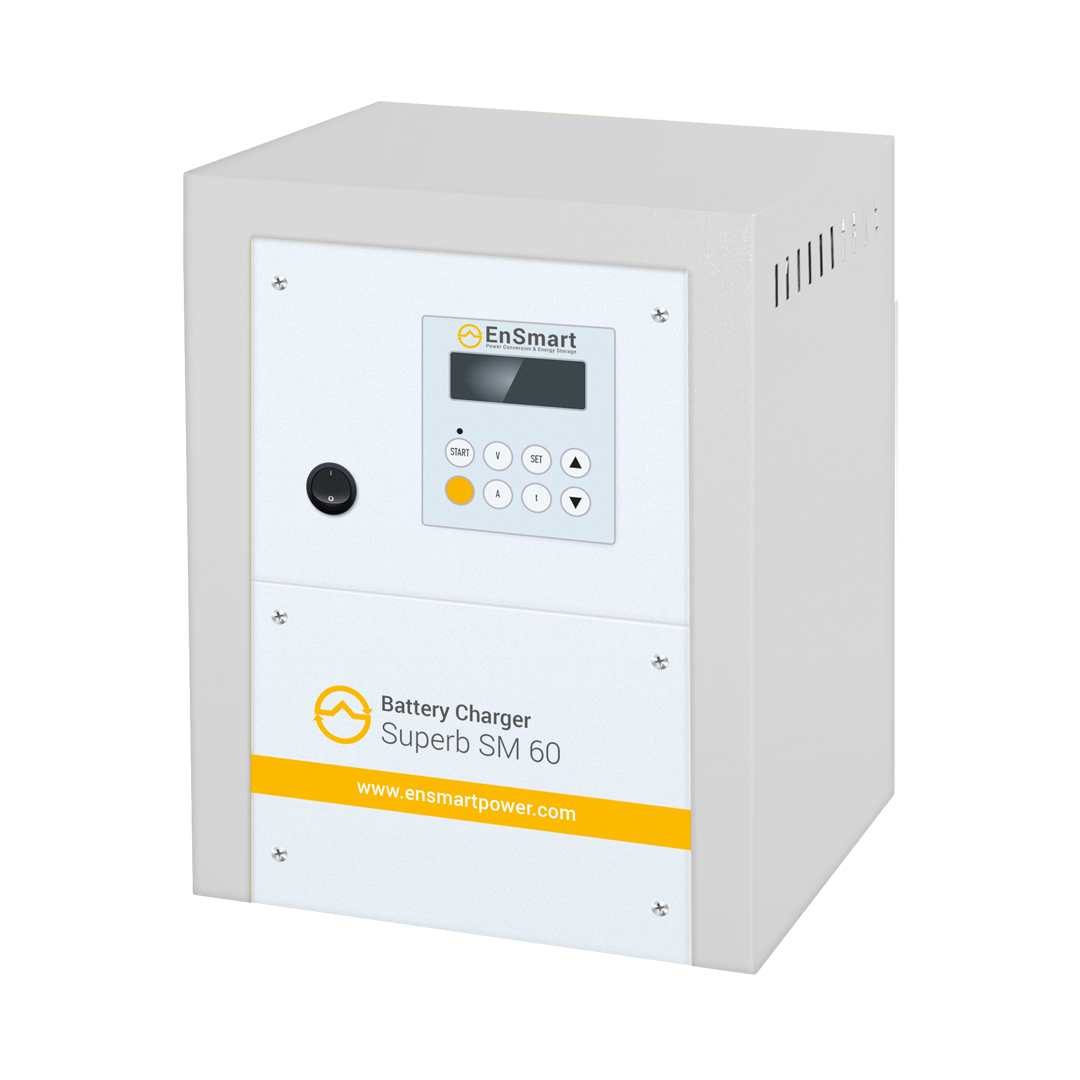

Superb SM Series

12-24 VDC 10A – 300A

Switch Mode (HF)
Battery Charger

  EnSmart Superb SM battery charger is designed with the most advanved Switch mode HF digital technology which makes it ripple-free, compact, light weight and silent.

  EnSmart Superb SM battery chargers are   for domestic, marine, industrial vehicle use. Any battery, either AGM, GEL, Lead acid, traction or Lithium can be connected to the Superb SM and charged quickly and completely.

  Usage : Vessels and Yachts,  Forklifts ,Rail Systems,
  Automobile Services, Electrical Devices,


 Proven Switched Mode HF Technology Battery Charger
 Automatic Charging with Voltage and Current Control
 Extremely Compact and Light
 Suitable for any type of battery
 High Efficiency ,Up to 30% Energy Saving
 1 Phase & 3 Phase Wide Power Range

Request Offer Find Distributor


Highlights



Safe And Reliable
Fully protected against short circuit, over current etc.


Cost Efficient
Simple and Low Cost High efficiency


User Friendly
Compact, Front LCD Panel and Auto start.
m
View

Battery extention cabinets for all Single/Three-phase EnSmart UPS..

FEATURES

Commercial ships, boats vessels and many industrial installations are all equipped with many electronic
devices which require the high quality non-stop power supply.
Ensmart Power's Superb SM automatic battery charger is the excellent solution to AC-DC battery charger requirement in marine and industry.
The HF Switch Mode digital technology makes it compact, extremely light and silent.
Designed for harsh marine and mobile use with wall mounted or stand alone enclosure options.

EnSmart Power 's Superb SM can charge any battery type (lead acid / lithium) quickly and completely.
It is available as 12V and 24 V from 10A to 300A
12V 10A , 12V 20A , 12V 30A , 12V 40A, 12V 60A , 12V 80A , 12V 100A, 12V 120A , 12V 150A , 12V 200A , 12V 300A
24V 10A , 24V 20A , 24V 30A , 24V 40A, 24V 60A , 24V 80A , 24V 100A, 24V 120A , 24V 150A , 24V 200A , 24V 300A

Smart Charging
Proven switched mode HF technology
Automatic Charging with Voltage and Current Control
Powerful battery charger, suitable for any type of battery

High Efficiency & High Protection

1 Phase & 3 Phase Wide Power Range
High Efficiency ,Up to 30% Energy Saving
Can be used as DC power supply
Over/Under Voltage, Over Current,
Short Circuit Protection,
Reverse Connection Protection

Compact and Easy
Robust enclosure for bulk head or table top mounting
Extremely Compact and Light
Functional LCD front display

How to make an EnSmart Superb SM battery charger selection:
10-15% of the battery used should be selected based on the rectifier selection.
In order to charge 12V 100Ah lead acid battery, 12V 10A or 15A amper battery charger should be chosen.

INPUT
Input Phase 1 Phase - 2 Phase - 3 Phase (Special Design)
Input Voltage Tolerance ±10%
Input Frequency 50 - 60 Hz
Power Factor 0.98
THDi <%10
OUTPUT
Output Current 10A - 300A
Output Voltage 12V - 24V
Ripple ≤1 Ripple
GENERAL
Cooling Air Cooling
Isolation Voltage 1500 VAC Input / Chassis Bridge, 500 VAC Output / Chassis Bridge, 500 VAC Between Input and Output
Insulation Class IP 20 - RAL 7032 (Special Design)
Efficiency 90%
Operating Temperature -20/50°C
Operating Ability to set Charge Mode for all Battery Types
Input / Output Connections Serial Connector - W Otomation
PROTECTION
Heat Protection Input / Output Overtemperature Protection
Measure Output Overcurrent Protection - DC High Low - DC Leakage - Mains Failure
TECHNOLOGY
IGBT Switch Mode Technology
Standard ISO 9001 - LVD - EN 62040 -1 - EMC
INDICATORS
LCD Panel 2 x 16 - 4 x 16 Line
PLC S71200 - S7300
Otomation Modbus / Profibus / ProfiNET / RS 232 / RS 485
DIMENSIONS (WXDXH) (MM)
ENS 1 150x240x340
ENS 2 200x240x340
ENS 3 370x260x290
ENS 4 400x280x340
ENS 5 450x320x400
ENS 6 500x390x580
Product Data Sheet
Superb SM Series
